5.1 Building a Compensator

In this section of the tutorial, you will build a standard 3-pole, 2-zero voltage-mode compensator using a built-in parameterized OpAmp and passive components.

After finishing this section, you will have a complete closed-loop synchronous buck switching power supply model like the following:

In this topic:

Key Concepts

This topic addresses the following key concepts:

  • Symbols can use variables, or parameterized values, that help with schematic reuse. For maximum flexibility, the compensator schematic uses parameterized values.
  • Each schematic has a command (F11) window which stores analysis directives and variable statements. The text in the F11 window is included in the simulation deck.
  • Parameter values can be assigned or calculated in the command (F11) window.

What You Will Learn

  • How to parameterize symbols using expressions and the F11 window.
  • Why, based on how POP works, choosing the switching node as the periodic input in section 3.2 Set up a POP Analysis was not the ideal choice.
  • How to solve a common POP simulation error by selecting a different POP trigger schematic node.
  • How to add parameter debug statements to the F11 window.

5.1.1 Build the Compensator Schematic

In the previous chapters you learned how to place symbols using the parts selector and keyboard shortcuts. Starting with the 9_SIMPLIS_tutorial_buck_converter.sxsch schematic, use the following table of shortcuts and the illustration below as a guide to place the compensator symbols in the area below the power stage.

Keyboard Shortcuts for Placing Compensator Symbols

Symbol Parts Selector Location Keyboard Shortcut
Multi-Level Parameterized Opamp (Version 8.0+) Analog Functions none
Resistor Commonly Used Parts 4
Capacitor (Ideal) Commonly Used Parts C
Power Supply Commonly Used Parts V
Bode Plot Probe (Gain/Phase) w/ Measurements Commonly Used Parts none

▲ back to top

5.1.2 Assign Parameterized Values to Symbols

After you have the drawn your schematic, double check that each resistor and capacitor has the reference designator as shown in the schematic above.

Important: The design procedure uses these reference designators to calculate values; therefore, they must match the illustration, or the calculated values will be assigned to the wrong components.
If your reference designators differ from those in the above image, follow these steps to change them:
  1. Select the resistor or capacitor symbol.
  2. Press Shift+F8.
    Result: A dialog opens for you to enter a new reference designator.
  3. Enter the reference designator as shown in the schematic above.

When you assign parameterized values, you enclose the parameter name or expression in curly braces. In this tutorial you will use the reference designator text as the parameter name, for example, the parameterized value for the resistor R3 will be {R3}.

Both the opening { and closing curly brace } characters are required. Without an opening and closing curly brace, the expression will not evaluate correctly and the circuit will not simulate.
To assign parameterized values to the resistor and capacitor symbols, follow these steps:
  1. Double click on each resistor or capacitor and change the value of the resistance or capacitance to a parameterized value.
  2. For the DC source V7, change the value to 0.6V.
    Tip: This will be the reference voltage for the compensator.

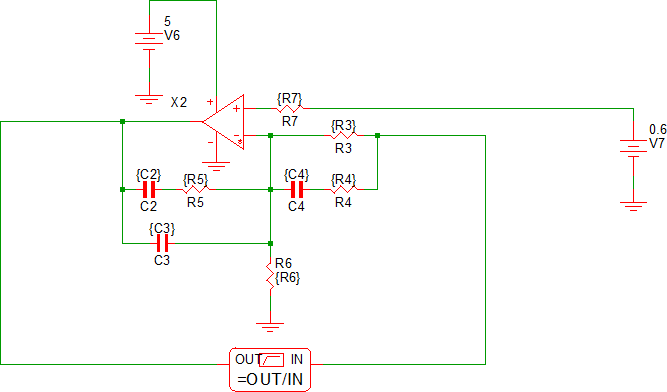

Your compensator schematic should now look like the following:

▲ back to top

5.1.3 Connect the Compensator to the Power Stage

You will now close the feedback loop by connecting the compensator to the power stage.

To connect the compensator to the power stage, follow these steps:
  1. Delete V3, the DC source which was the duty cycle control.
  2. Delete the wires connecting the AC source V5 to the comparator U1 input.
  3. Move V5 to the right side of the schematic.
    Tip: This will become the loop perturbation source.
  4. Wire the compensator to the power stage as shown in the image below:
  5. Add the Bode Plot Probe across the V5 source.
    Tip: This will probe the loop gain of the converter.
  6. The output capacitor in this design has no ESR. In the previous simulations this was not an issue, but when the compensator is added, the ESR plays a role in calculating the compensator values. To include an ESR on this multi-level capacitor, double-click on C1 and set the model level to 2, and assign an ESR of 4mΩ.
    Result: The ESR value of 4m is displayed on the schematic. This indicates the model for the capacitor now includes an ESR.

5.3.4 Disable Power Stage and Compensator Bode Plot Probes

You now have three Bode Plot probes on the schematic and each probe will output a gain and phase curve with the default names of Gain and Phase. This will make a confusing graph with six curves, so in the next procedure, you will turn off the compensator and power stage probes as well as rename the curves generated by these probes. This will allow easy debugging later when you might want to see the power stage or compensator bode plots.

To turn off the probes and rename the output curves, follow these steps:
  1. Double click on the compensator bode plot probe and rename the gain and phase curves to Compensator Gain and Compensator Phase.
  2. Check Disable gain/phase at the top of the dialog, and then click Ok.
  3. Double click on the power stage bode plot probe and rename the gain and phase curves to Plant Gain and Plant Phase.
  4. Check Disable gain/phase at the top of the dialog, and then click Ok.

▲ back to top

5.1.5 Enter Parameter Values in the Command (F11) Window

In 5.1.3 Connect the Compensator to the Power Stage, you added parameterized values to each symbol by enclosing the variable name in curly braces { }. The curly braces form an expression and tell the program to stop and evaluate the expression; in this case, the program simply substitutes the value for the variables R3, C2, etc. in place of the expressions, {R3}, {C2}, etc. At this point in the design, the values for the compensator are not defined. Next, you will assign values to these variables using .VAR statements.

Explaining how to compensate a 3-Pole/2-Zero voltage mode compensator is beyond the scope of this tutorial. Instead of dwelling on the compensator design process, which was taken from this application note, you will copy the text lines from this tutorial and paste them into the F11 window of the schematic. The .VAR lines are actually an entire design process taken from a spreadsheet and turned into variable statements.

To enter the parameter values in the F11 window, follow these steps.

  1. Copy all text in the box below:
    *** Circuit Specifications ***
    .VAR VIN = 12
    .VAR VRAMP = 1
    .VAR L = 680n
    .VAR C = 220u
    .VAR VOUT = 1.2
    .VAR VREF = 0.6
    .VAR ESR = 4m
    .VAR FXOVER = 80k
    .VAR FSW = 500k
    *** Calculated Parameters - not used in calculations
    .VAR FLC = 13012.31
    .VAR FESR = 180857.89
    .SUBCKT ONE_PULSE_SOURCE_I 1 2 vars: _T_RISE=0 _T_FALL=0 _DELAY=0 _V1=0 _V2=1 _PWIDTH=1u
    .NODE_MAP P 1
    .NODE_MAP N 2
    {'*'} _DELAY : {_DELAY}
    {'*'} _T_RISE : {_T_RISE}
    {'*'} _PWIDTH : {_PWIDTH}
    I1 1 2 PWL   NSEG=4   X0=0 Y0={_V1}   X1={_DELAY} Y1={_V1}   X2={_DELAY+_T_RISE} Y2={_V2}   X3={_DELAY+_T_RISE+_PWIDTH} Y3={_V2}   X4={_DELAY+_T_RISE+_PWIDTH+_T_FALL} Y4={_V1}
    *** Compensator Design - Find desired poles and zeros ***
    *** Place Second Zero at LC
    .VAR FZ2 = {1/(2*pi*SQRT(L*C))}
    *** Place First Zero at 75% of FZ2
    .VAR FZ1 = {0.75*FZ2}
    *** Place Second Pole (1st pole at origin) at ESR zero
    .VAR FP2 = {1/(2*pi*ESR*C)}
    *** You will get better performance putting the pole
    *** above ESR zero (different than design procedure)
    .VAR FP2 = {0.75*FSW}
    *** Place Third Pole at 1/2 the switching frequency
    .VAR FP3 = {0.5*FSW}
    *** Compensator Design - Assign resistor and capacitor values   ***
    *** The design procedure was taken from IR/Infineon an-1162.pdf ***
    ***                                                             ***
    *** http://www.irf.com/technical-info/appnotes/an-1162.pdf      ***
    *** Choose C4 to be 2.2nF This is somewhat arbitrary,
    *** it sets the magnitude of other compensator values.
    .VAR C4 = 2.2n
    *** From C4 and FP2, Calculate R4
    .VAR R4 = {1/(2*pi*C4*FP2)}
    *** From C4, R4 and FZ2, Calculate R3
    .VAR R3 = {1/(2*pi*C4*FZ2)-R4}
    *** From R3, VREF and Nominal VOUT, Calculate R6
    .VAR R6 = {R3*VREF/(VOUT-VREF)}
    *** Calculate R7 as the parallel combination of R3 and R6
    .VAR R7 = {R3*R6/(R3+R6)}
    *** Calculate R5. Modify VRAMP to adjust final loop characteristics
    .VAR R5 = {2*pi*FXOVER*L*C*VRAMP/(VIN*C4)}
    *** From R5 and FZ1, Calculate C2
    .VAR C2 = {1/(2*pi*R5*FZ1)}
    *** From R5 and FP3, Calculate C3
    .VAR C3 = {1/(2*pi*R5*FP3)}
    *** Debug. These statements come out in the deck as comments. ***
    *** Simulator -> Edit Netlist (after preprocess) opens file   ***
    {'*'} FZ2 : {FZ2}
    {'*'} FZ1 : {FZ1}
    {'*'} FP2 : {FP2}
    {'*'} FP3 : {FP3}
    {'*'} C4 : {C4}
    {'*'} R4 : {R4}
    {'*'} R3 : {R3}
    {'*'} R6 : {R6}
    {'*'} R5 : {R5}
    {'*'} C2 : {C2}
    {'*'} C3 : {C3}
  2. In the schematic editor, press F11.
    Result: The command (F11) window opens at the bottom of the schematic.
  3. Drag the splitter bar between the command (F11) window and the schematic so the command window and the schematic take approximately 50% of the vertical space.
  4. In the command window, scroll down past the last statement, which is the
    line and use the keyboard shortcut Ctrl+V to paste the copied text in the F11 window below the .SIMULATOR DEFAULT line.

Four sections of text are used to parameterize the compensator.

  • The first section has design values. The statement .VAR VIN = 12 assigns the number 12 to the variable VIN. Although VIN is not used in the schematic, it is used in calculations for other variables. You could add VIN to the input source as a parameter {VIN}.
  • The second section has the calculations for the compensator poles and zeros. The statement .VAR FZ2 = {1/(2*pi*SQRT(L*C))} assigns a value to the FZ2 variable. In this case, the value is the resonant frequency of the converter.
    Note: The variables L and C, as well as the global constant pi and the built-in function SRQT(), are used in the expression on the right side of the equals sign. The variables L and C must be assigned before they are used; therefore, the order of the lines in the window is important. The global constant pi and the function SQRT() are defined by the program.
  • The third section calculates the actual resistor and capacitor values from the first section of the circuit specifications and the poles and zeros from the second section.
  • The final section has debug statements. These statements output comments to the simulation deck so you can easily debug which values are being used in the compensator. For example, the values in the design will output the following to the deck file:
    * FZ2 : 13012.3080131893
    * FZ1 : 9759.23100989196
    * FP2 : 375000
    * FP3 : 250000
    * C4 : 2.2e-009
    * R4 : 192.915082535631
    * R3 : 5366.67940889006
    * R6 : 5366.67940889006
    * R5 : 2848.37733925475
    * C2 : 5.72541552580328e-009
    * C3 : 2.23502610975745e-010

A schematic saved at this state can be downloaded here: 10_SIMPLIS_tutorial_buck_converter.sxsch.
