SIMPLIS includes a library of discrete time filters used for modeling digital control
loops. These filters process analog control signals, producing outputs with the desired
z-domain transfer functions. The discrete time filters are compatible with the POP and AC
analyses, allowing direct simulation of digital control-loop behavior.
Devices in the library include:
Each of the discrete time filters is driven by an input clock signal.
- For proper operation, the input clock signal needs to be made up of a train of pulses
with pulse widths equal to or wider than the Time of Acquisition set for the
- For the most efficient simulation, the pulses can be generated by connecting a periodic
pulse source, such as a waveform generator, to the input of a Sampling Clock Generator for Discrete Filters.
- The CLK_OUT output of that device will generate the input clock signals for the
discrete filters. The driving periodic pulse source can have pulse widths shorter than
the time of acquisition as long as they are well defined pulses.

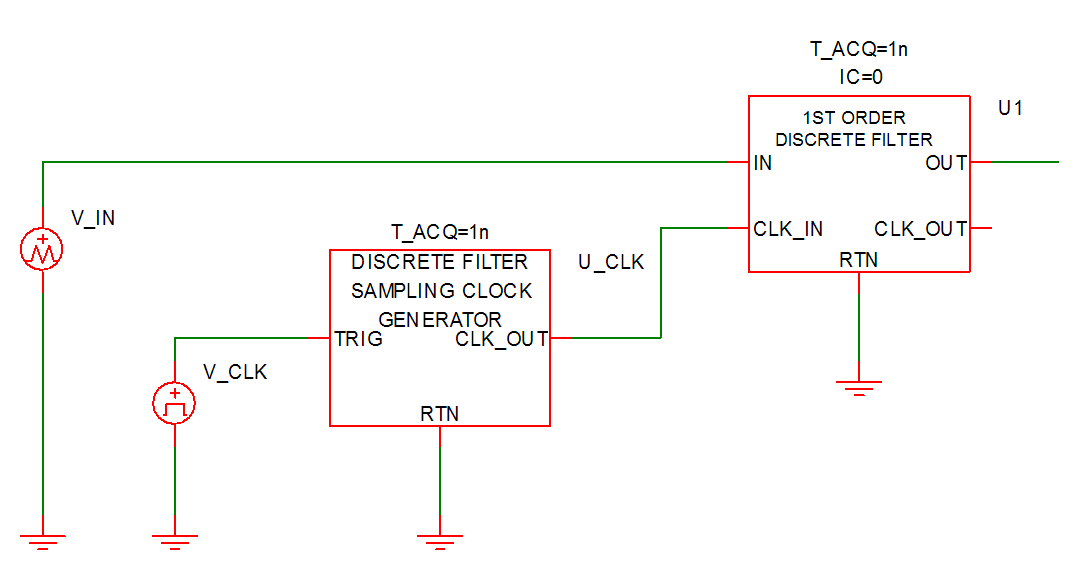

A schematic of the connection between a Sampling Clock Generator for Discrete Filters and a 1st Order Discrete Time Filter is shown below.
This example can be downloaded here: simplis_034_1stordfilter_example
- If the time of acquisition is tACQ, the Sampling Clock Generator for Discrete Filters generates a pulse width equal
to tACQ every time that the TRIG input makes a positive transition
- During this pulse, the discrete filter samples the input data at the input pin
IN. The time to satisfactorily acquire the input data is equal to
- After tACQ has expired, the discrete filter updates its output, and the
output settles within a time duration less than or equal to tACQ.
- While the output is being updated, the output CLK_OUT is raised to a high value.
This timing behavior is described by the waveforms below:
A discrete filter with more than two poles can be synthesized through a cascade of one-pole
and/or two-pole discrete filters. In that case, the timing signal for each driven stage is

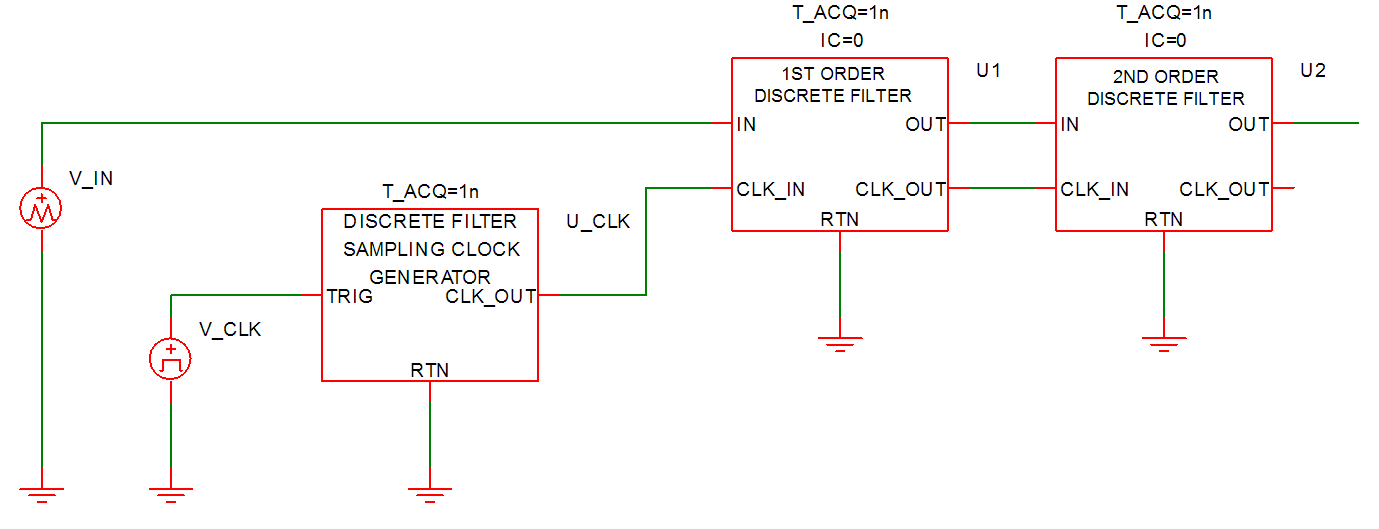

derived from the CLK_OUT signal of the immediately preceding stage. A schematic
using cascaded connections of a 1st Order Discrete Time Filter and a 2nd Order Discrete Time Filter is shown below.
This example can be downloaded here: simplis_001_cascaded_filters_example
