» DVM Test Report: Transient|Step Load|Vin Nominal|50% Load to 100% Load

Test Details
Schematic LTC3406B - DVM ADVANCED.sxsch
Test Transient|Step Load|Vin Nominal|50% Load to 100% Load
Date / Time 12/10/2015 5:41 PM
Report Directory dc_dc_built_in\Transient\StepLoad\Vin Nominal\50% Load to 100% Load
Log File report.txt

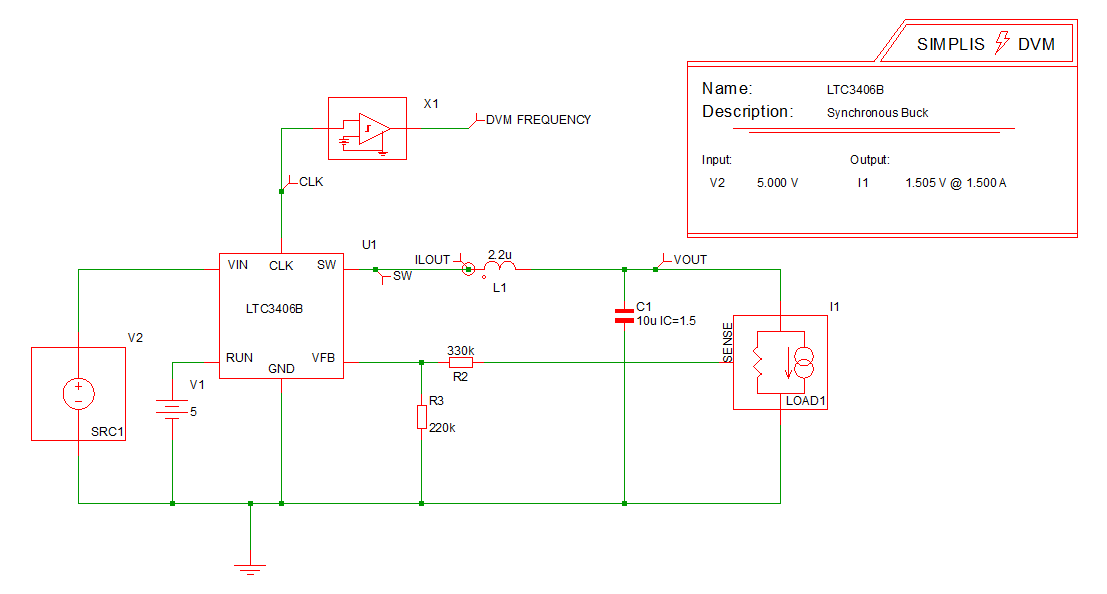

Screenshot schematic.png
Status FAIL
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
ILOAD1
MIN
748.345m
MAX
1.52984
ILOAD1_in_reg
AVG
1.50418
MIN
1.49829
MAX
1.51031
RMS
1.50418
PK2PK
12.021m
ISRC1
MIN
423.431u
MAX
1.92041
Overshoot_VLOAD1 1.56487
sw_freq 955.582k
Undershoot_VLOAD1 1.18142
VLOAD1
MIN
1.18142
MAX
1.56487
VLOAD1_in_reg
AVG
1.51339
MIN
1.50156
MAX
1.52568
RMS
1.5134
PK2PK
24.1221m
vout1_recovery_time 22.7793u
VSRC1
MIN
4.99808
MAX
5
Measured Spec Values
Max_VLOAD1_in_reg PASS: Max. Output1 Voltage in Reg. (1.52568) is less than or equal to Max. Output1 Voltage Spec (1.58025)
Min_VLOAD1_in_reg PASS: Min. Output1 Voltage in Reg. (1.50156) is greater than or equal to Min. Output1 Voltage Spec (1.42975)
Overshoot_VLOAD1 PASS: Max. Output1 Voltage (1.56487) is less than or equal to Max. Output1 Voltage Spec (1.58025)
Pk2Pk_VLOAD1_in_reg FAIL: Pk-to-Pk Output1 Voltage in Reg. (24.1221m) is not less than or equal to Max. Output1 Voltage Spec (20m)
Undershoot_VLOAD1 FAIL: Min. Output1 Voltage (1.18142) is not greater than or equal to Min. Undershoot Output1 Voltage Spec (1.42975)

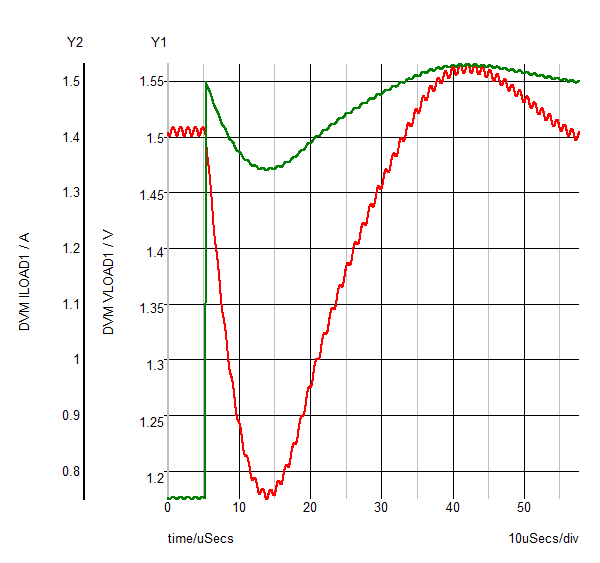

LOAD1
VLOAD1
ILOAD1
SXGPH File simplis_tran1_539.sxgph

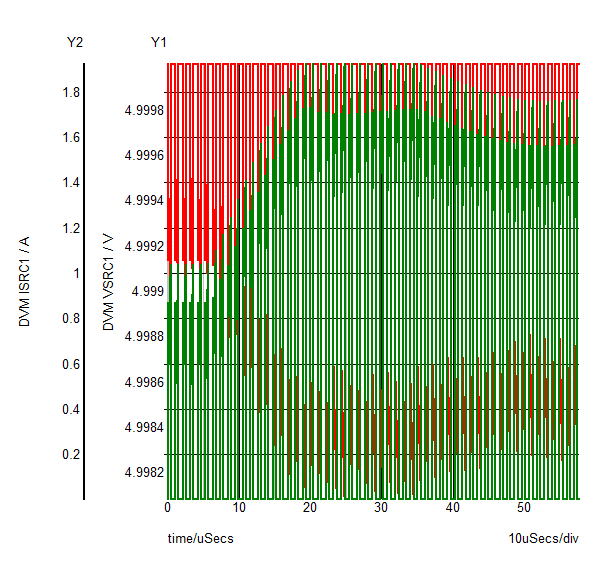

SRC1
VSRC1
ISRC1
SXGPH File simplis_tran1_534.sxgph

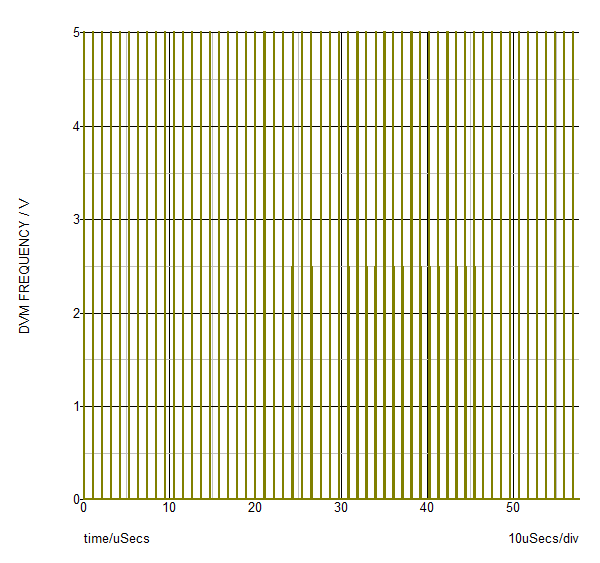

default
FREQUENCY
SXGPH File simplis_tran1_517.sxgph
Other SXGPH Files
clock#tran simplis_tran1_522.sxgph
